J Series - Thin-Film NTC Thermistors

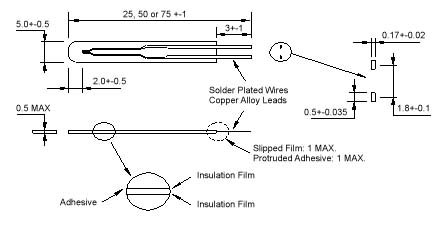

The J series thermistor feature ultra thinness of 500 µm and superior electrical insulation. It is possible to use with safety in ambience that might contact with electrodes.

Features

項目符號 High Accuracy
項目符號 Operating Range
項目符號 Suitable for narrow space
項目符號 Elastic and solder easily
項目符號 Lead Free
項目符號 Top Quality
項目符號 High Stability
項目符號 Fast Thermal Response
項目符號 Low Cost and Long Life
項目符號 RoHS compliance

Specifications

項目符號 Operating temperature range: -50oC to 90oC
項目符號 Tolerance: + 1%,  +3 or  +5%
項目符號 Dissipation constant: 0.7 mW/oC in still air
項目符號 Thermal time constant: Approx 5 seconds in air
項目符號 Maximum power rating: 3.5 mW (at 25oC)

Options

項目符號

Resistance at 25oC

010K: 10K ohms 100K: 100K ohms
項目符號 Tolerance @25oC
01: +1% 03: +3%
05: +5% 　
項目符號 B value 25oC / 85oC
3435K 3977K
項目符號 Lengths
015: 15mm 025: 25mm
050: 50mm 　

　

Products of J Series
Part No. Resistance at 25oC Tolerance B Value (25oC/85oC) Length
J010K013435-025 10K ohms +1% 3435 025
J100K013937-015 100K ohms +1% 3977 015
J100K013435-050 100K ohms +1% 3435 050

　
