P
Series - Point Matched NTC Thermistors
P
Series thermistors are precision tested at a chosen tolerance to a specific
temperature. This cost effective thermistor provides an advantage to industries
with high volume applications, such as in HVAC, automotive and industrial
market.
Features
 |
High Accuracy |
|
|
Operating Range |
|
|
Small Size |
|
|
Epoxy Encapsulated |
|
|
Lead Free |
|
|
|
Top Quality |
|
|
High Stability |
|
|
Fast Thermal Response |
|
|
Low Cost and Long Life |
|
|
RoHS compliance |
|
Specifications
|
|
Operating temperature range: -50oC
to 150oC |
|
|
Tolerance: + 0.1oC or +0.2oC
from -20oC to 100oC |
|
|
Dissipation constant: 2mW/oC in
still air and 13mW/oC in stirred oil |
|
|
Thermal time constant: Typically 0.75 second in stirred oil |
|
Options
|
|
Resistance at 25oC
|
| 001K: 1K ohms |
002K: 2K ohms |
| 006K: 6K ohms |
010K: 10K ohms |
| 020K: 20K ohms |
047K: 47K ohms |
| 100K: 100K ohms |
2252: 2, 252 ohms |
|
|
Tolerance @25oC |
| 01: +1% |
02: +2% |
| 03: +3% |
05: +5% |
| 10: +10% |
25: +0.25oC |
| 50: +0.50oC |
|
|
|
Temperature ranges |
| 1: -20oC |
2: 0oC |
| 3: 25oC |
4: 37oC |
| 5: 70oC |
6: 100oC |
|
|
R/T Curve
|
|
A: Curve A
|
B: Curve B
|
|
C: Curve C
|
D: Curve D
|
|
E: Curve E
|
H: Curve H
|
|
J: Curve J
|
K: Curve K
|
|
P: Curve P
|
|
|
|
Lead Type
|
|
Code
|
AWG
|
Lead
o.d.
|
Lead
Type
|
|

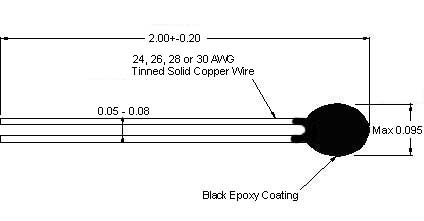

02
|
32
|
0.008”
|
Tinned Copper
|
|
04
|
30
|
0.010”
|
Tinned
Copper
|
|
06
|
28
|
0.0126”
|
Tinned Copper
|
|
08
|
26
|
0.0169”
|
Tinned Copper
|
|
10
|
32
|
0.008”
|
Nickel
|
|
12
|
30
|
0.010”
|
Nickel
|
|
14
|
28
|
0.0126”
|
Nickel
|
|

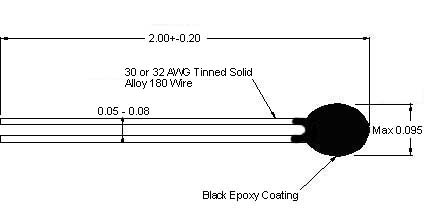

16
|
32
|
0.008”
|
Tinned Alloy 180
|
|
18
|
30
|
0.010”
|
Tinned Alloy 180
|
|
Products
of P Series
| Part No. |
Resistance at 25oC |
Tolerance |
Temperature Ranges |
T/T Curve |
Lead Type |
|
P2252013A04 |
2252 ohms |
+1% |
25oC |
Curve A |
04 |
|
P010K013A04 |
10K ohms |
+1% |
25oC |
Curve A |
04 |
|
P010K013C06
|
10K ohms |
+1% |
25oC |
Curve C |
06 |
|
P005K033A04 |
5K ohms |
+3% |
25oC |
Curve A |
04 |
|
P100K033A04
|
100K ohms |
+3% |
25oC |
Curve A |
04 |
|
P2252053A04
|
2252 ohms |
+5% |
25oC |
Curve A |
04 |
| P2252053A06 |
2252 ohms |
+5% |
25oC |
Curve A |
06 |
|
P005K053A04
|
5K ohms |
+5% |
25oC |
Curve A |
04
|
| P100K103D04 |
100K ohms |
+10% |
25oC |
Curve D
|
04 |
