MN
Series - Life Sciences & Miniature Temperature Probes Type NTC Thermistors

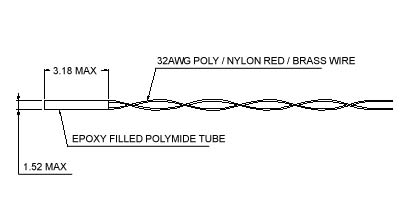

MN Mini Series 1.52mm
Max. dia. These tiny
thermistors can be used in Life Science applications that require fast response
and small size. Since they are available in many custom options they can be used
in unlimited temperature sensing applications in any industry.
Features
 |
Interchangeable or Point
Matched tolerances
|
|
|
Custom designs
|
|
|
Potted with epoxy in a
polyamide tube |
|
|
Opera table with YS1 400
and 700 temperature monitor instruments
|
|
|
|
Top Quality |
|
|
High Stability |
|
|
Fast response accuracy to
+0.1℃ |
|
|
Low Cost and Long Life |
|
Specifications
|
|
Operating temperature range: -50oC
to 150oC.
Optimum stability is achieved when they
are stored at temperatures less than 50℃
and operated continuously in temperatures less than 100℃.
For Interchangeable LSMC Series thermistors optimum stability is
achieved when they are operated at temperatures within the specified
temperature range. |
|
|
Tolerance: +0.10℃,
+0.20℃,
+0.25℃,
+0.50℃,
+1.00℃,
+ 1%, +2, +5%or +10% |
|
|
Dissipation constant: 1.5mW/oC
in still air and 10mW/oC in
stirred oil. |
|
|
Thermal time constant: Typically 0.4 seconds in
still oil. |
|
|
Custom options:
Various lead materials, Termination lengths.
|
|
Options
|
|
Resistance at 25oC
|
|
10K: 10K ohms |
100K: 100K ohms |
|
30K: 30K ohms |
|
|
|
Tolerance @25oC |
| 01: +0.1℃ |
02: +0.2℃ |
| 25: +0.25℃ |
|
|
|
B value
25oC / 85oC
|
|
Products
of MN Series
|
Part No. |
Resistance at 25oC |
Lead Material |
Lead Length |
Tolerance |
B Value (25oC / 85oC) |
|
MN10K-32350-023977 |
10K ohms |
32 AWG |
350mm |
+0.2℃ |
3977 |
|
MN100K-32350-023977 |
100K ohms |
32 AWG |
350mm |
+0.2℃ |
3977 |
