MC Series - Life Sciences & Micro Temperature Probes Type NTC Thermistors

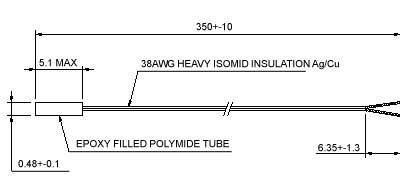

MC Micro Series 0.48mm Max. dia. These tiny thermistors can be used in Life Science applications that require fast response and small size. Since they are available in many custom options they can be used in unlimited temperature sensing applications in any industry.

　

Features

項目符號 Interchangeable or Point Matched tolerances
項目符號 Custom designs
項目符號 Potted with epoxy in a polyamide tube
項目符號 Opera table with YS1 400 and 700 temperature monitor instruments
項目符號 Top Quality
項目符號 High Stability
項目符號 Fast response accuracy to +0.1℃
項目符號 Low Cost and Long Life

Specifications

項目符號 Operating temperature range: -50oC to 150oC. Optimum stability is achieved when they are stored at temperatures less than 50℃ and operated continuously in temperatures less than 100℃. For Interchangeable LSMC Series thermistors optimum stability is achieved when they are operated at temperatures within the specified temperature range.
項目符號 Tolerance: +0.10℃, +0.20℃, +0.25℃, +0.50℃, +1.00℃, + 1%,  +2, +5%or +10%
項目符號 Dissipation constant: 0.3mW/oC in still air and 2.5mW/oC in stirred oil.
項目符號 Thermal time constant: Typically 0.25 seconds in still oil.
項目符號 Custom options: Lead materials: AWG 38nickel alloy or copper  conductors with heavy isomid insulation  parallel bonded configuration. Parylene coating is available which Provides a thin coating resistant to corrosion and humidity.

Options

項目符號

Resistance at 25oC

10K: 10K ohms

100K: 100K ohms

30K: 30K ohms

　
項目符號 Tolerance @25oC
01: +0.1℃ 02: +0.2℃
25: +0.25℃
項目符號

B value 25oC / 85oC

3892K

3977K

　

Products of MC Series

Part No. Resistance at 25oC Lead Material Lead Length Tolerance B Value (25oC / 85oC)
MC10K-38350-023977 10K ohms 38 AWG 350mm +0.2℃ 3977
MC100K-38350-023977 100K ohms 38 AWG 350mm +0.2℃ 3977

　
